SPECIFICATIONS

Brand Name: Auloda

Indoor/Outdoor Use: Indoor-Outdoor

Video Capture Resolution: other

Camera Mount Type: Fixed Camera Mount

Camera Mount Type: other

Controller Battery: No include

Origin: Mainland China

Takeoff Weight: 100-200g

Aerial Photography: No

Control Channels: 8 CHANNELS

Transit Time (Days): 4 minutes

Flight Time: <5

Controller Mode: MODE1

Controller Mode: MODE2

Recommend Age: 14+y

Anti-wind Ability: No

Hign-concerned Chemical: None

Is Electric: No battery

Material: Carbon Fiber

Material: Plastic

Material: Metal

Drone Weight: 180g

Remote Distance: 1000 meters

Package Includes: Original Box

Package Includes: Operating Instructions

Remote Control: Yes

State of Assembly: Ready-to-Go

Barcode: No

Type: HELICOPTER

Features: other

Dimensions: Wheelbase: 114mm

Certification: CE

Warning: Does not contain any batteries

Warranty: 1 month

Model Number: GEPRC Cinelog25 V2 HD

Operator Skill Level: Beginner

Operator Skill Level: Intermediate

Operator Skill Level: expert

Equipped with Aerosol Spray System/Equipment Capacity: No

Charging Voltage: 14.8V

Motor: Brushless Motor

Charging Time: 30 minutes

Plugs Type: XT30

Power Source: Electric

Note:

Please select the desired product according to the option name

The option name is the type of camera + receiver

O3 is O3 Air Unit VTX；O3 Camera

The Wasp version is Runcam Link VTX; Runcam Wasp Camera

Both are HD

Summary

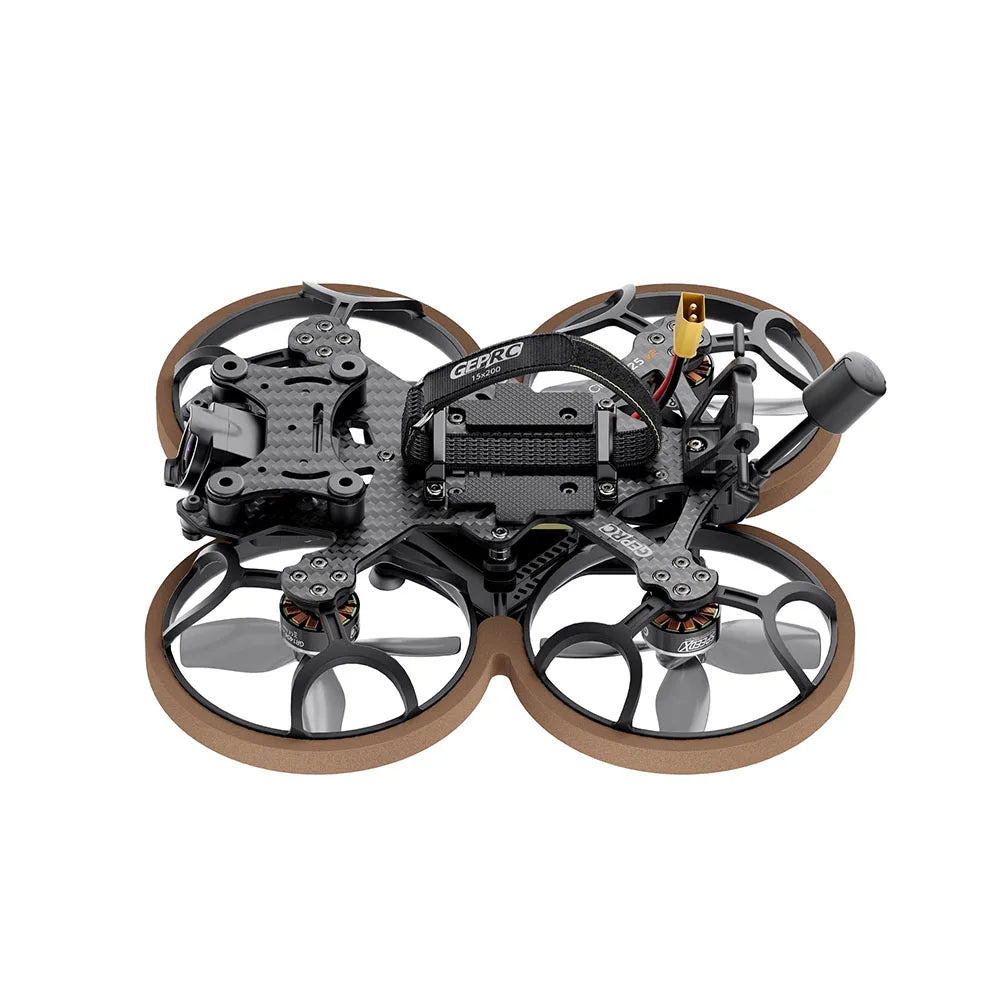

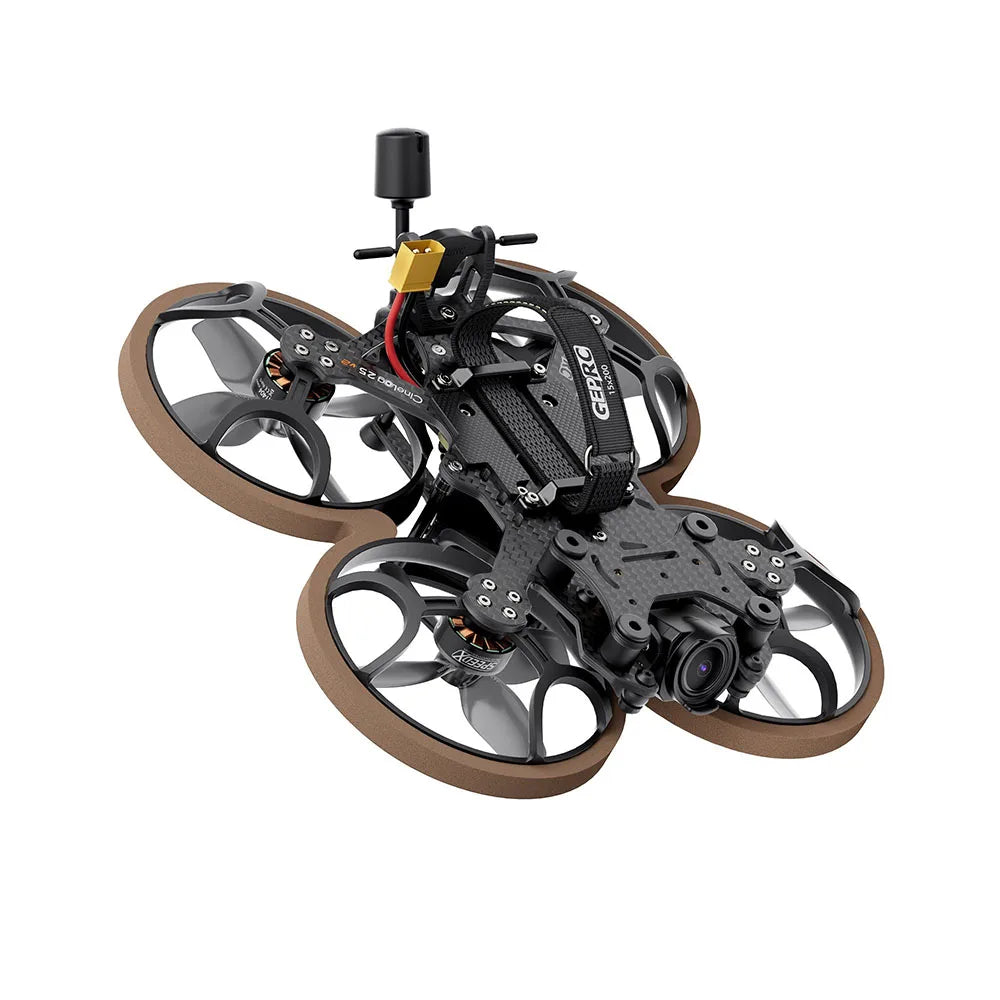

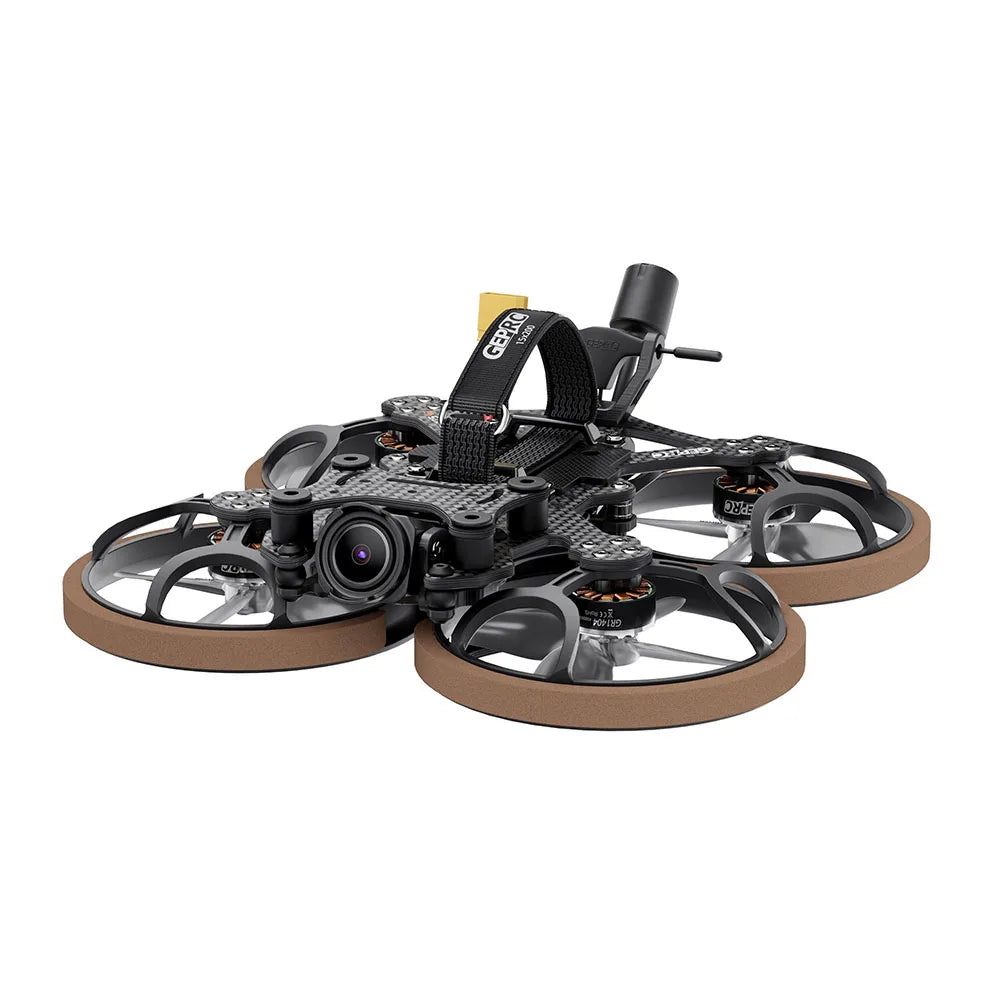

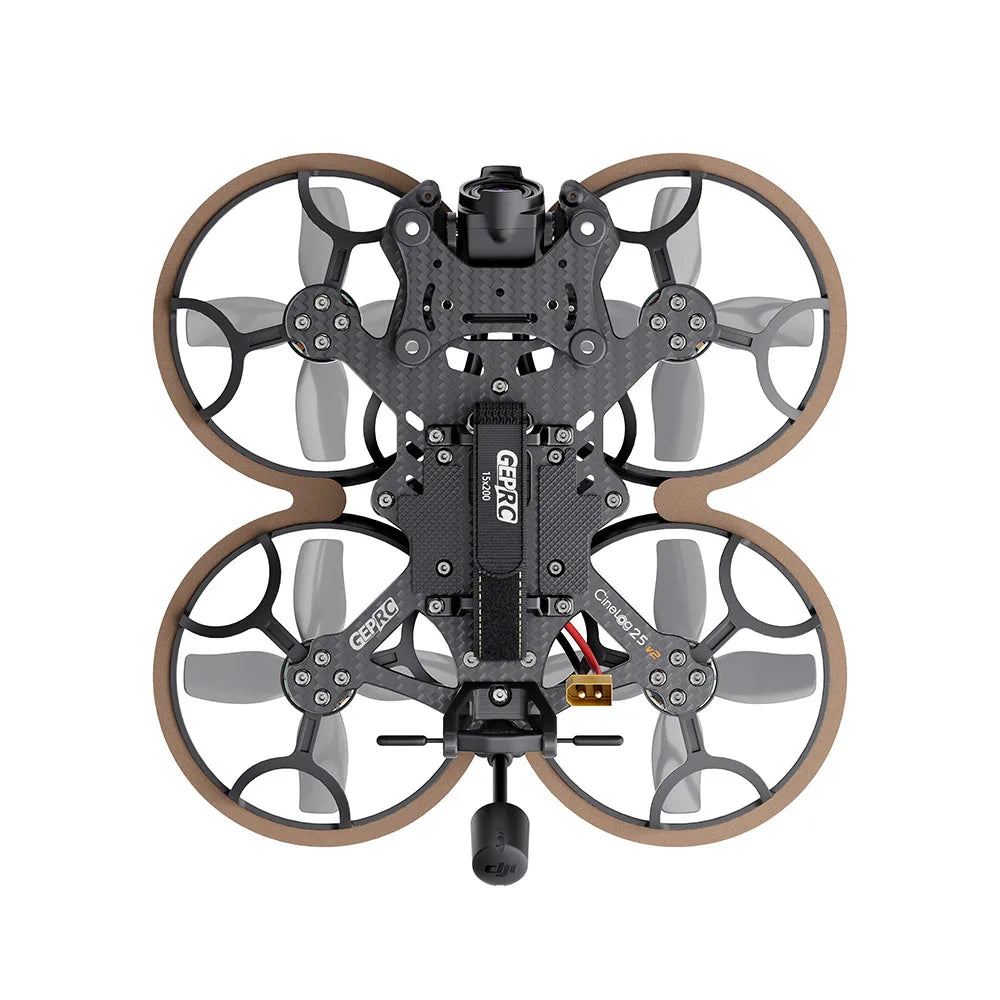

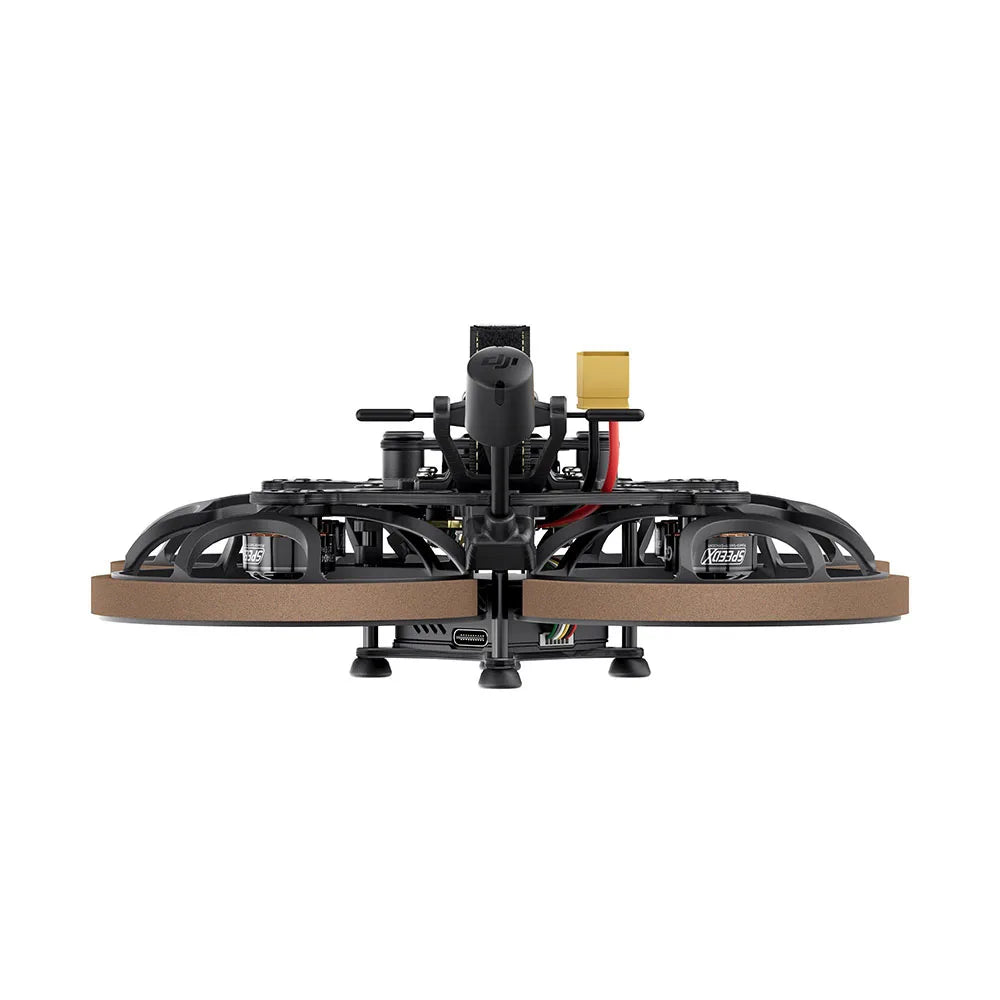

From progress to evolution, a comprehensive reconstruction of the previous generation of design. Finally we come to the Cinelog25 V2 version.

This upgrade of Cinelog25 V2 has launched three video transmission versions, the most important of which is the O3 Air Unit video transmission version. Based on the O3 Air Unit’s built-in anti-shake requirements for fuselage shock, the Cinelog25 V2 can achieve excellent anti-shake effects by matching the camera damping ball.

It is redesigned to be fixed with aluminum parts and cable ties, which is convenient for battery replacement. The flight system uses the new TAKER G4 35A AIO with 1404 4500KV motors and HQ DT63mmX4 propellers for excellent flight performance.Install the propeller guard which can effectively prevent people from being injured due to flight mistakes.Equipped with GPS M10 chip, quickly search for satellites.

Cinelog25 V2 is a 2.5-inch high-definition FPV that integrates indoor and outdoor flying. Developed by the GEPRC team,the flight feels delicate and the experience is good.

Feature

1. Designed aluminum parts with cable ties to facilitate the change of batteries.

2. Use the new TAKER G4 35A AIO, has better computing power.ESC over-current protection makes it stable and reliable.

3. Design propeller guard, which can effectively prevent people from flight mistakes.

4. The fuselage is small and compact, suitable for indoor and outdoor.Mounting Naked GP8 to shoot beautiful videos.

1. Cinelog25 V2 HD O3 Specifications

Model:Cinelog25 V2 HD O3 Quadcopter

Frame: GEP-CL25 V2

Wheelbase: 114mm

Gimbal plate: 2.0mm

Top plate: 2.5mm

Bottom plate: 2.0mm

FC system: TAKER G4 35A AIO

MCU：SMT32G473CEU6

Gyro: ICM 42688-P

OSD: Betaflight OSD w/AT7456E

ESC: 8Bit 35A

VTX: O3 Air Unit

Camera: O3 Camera

Antenna: O3 Original Antenna

Motor: GR1404 4500KV Motor

Propeller: HQProp DT63mm*4

GPS:M10 nano (optional)(GPS is available only if the option includes GPS)

Cinelog35 V2 HD O3 PNP weight:174g±5g

Receiver: PNP(built-in O3 Air Unit receiver) / GEPRC ELRS24 / TBS Nano RX

Recommended battery:LiPo 4S 660mah-850mah

Flight time: 4′00″ -6′ 00″

2. Cinelog25 V2 HD Wasp Specifications

Model:Cinelog25 V2 HD Wasp Quadcopter

Frame: GEP-CL25 V2

Wheelbase: 114mm

Gimbal plate: 2.0mm

Top plate: 2.5mm

Bottom plate: 2.0mm

FC system: TAKER G4 35A AIO

MCU：SMT32G473CEU6

Gyro: ICM 42688-P

OSD: Betaflight OSD w/AT7456E

ESC: 8Bit 35A

VTX: Runcam Link

Camera: Runcam Wasp

Antenna: GEPRC Peano 5.8G LHCP UFL

Motor: GR1404 4500KV Motor

Propeller: HQProp DT63mm*4

GPS:M10 nano (optional)(GPS is available only if the option includes GPS)

Cinelog25 V2 HD Wasp PNP weight: 167g±5g

Receiver: PNP(built-in Link receiver) / GEPRC ELRS24 / TBS Nano RX

Recommended battery:LiPo 4S 660mah-850mah

Flight time: 4′00″ -6′ 00″

Related products:

GEPRC Cinelog25 V2 Analog Quadcopter

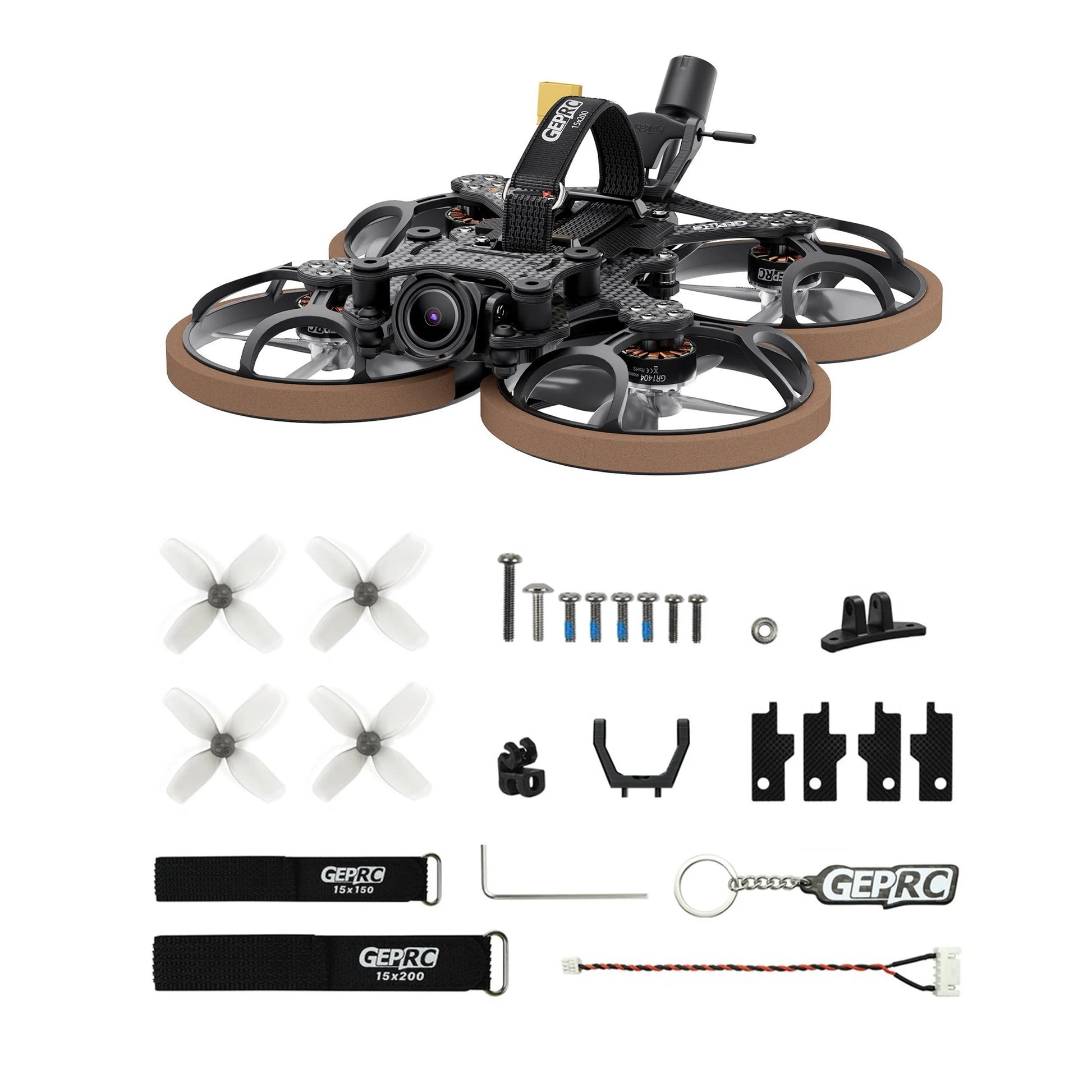

Includes

1 x Cinelog25 V2 HD Quadcopter

2 x HQProp DT63mm*4（2pairs）

1 x Battery strap M15*200mm

1 x Battery strap M15*150mm

2 x Battery Silicone Pads

1 x Set of screws

1 x L-shaped screwdriver 1.5MM

1 x Keychain

1 x Naked Camera GP8 base

1 x T-type Antenna mount
