Description：

• Ditch the GoPro for unbelievable speed, power and responsiveness, powered by AOS X-Cell.

• Take your FPV experience to the next level with the AOS 4 V5. Engineered for exceptional 4" performance, durability, and customization, it’s ideal for professionals, enthusiasts, and newcomers. Unleash your creativity and explore new possibilities in your freestyle flying.

Features

Metal Camera Cage

The AOS 4 V5 is equipped with an ultra-durable 7075 Aluminium Camera Cage that accommodates 14 - 20mm cameras, ensuring perfect compatibility with a wide range of FPV camera systems. The frame allows for hard or soft mounting of all popular camera systems including Analog, WS Avatar, HDZero and DJI. O3 ND Filters are supported. STL files for TPU camera mounts are linked below.

Vibration Isolation

Say goodbye to unwanted vibrations that can hinder your drone's performance. The AOS 4 V5 boasts the new patent pending AOS X-Cell anti-vibration mount for the flight control stack, reducing vibrations by up to 50%. This groundbreaking feature enables you to run lower filtering, dial in higher PID gains, and achieve unparalleled flight performance.

Easy to build

The AOS 4 V5 is designed to be the easiest and most user-friendly FPV frame to build. It's perfect for beginners and experts alike with plenty of space, easy access to every screw and steel press-nuts to reinforce the arm and stack mountings.

Flexible Battery Mounting

Experiment with different battery configurations by choosing between lengthwise or toilet tank battery mounting options. This flexibility allows you to optimize your drone's balance and performance based on your flying style and preferences.

Specifications:

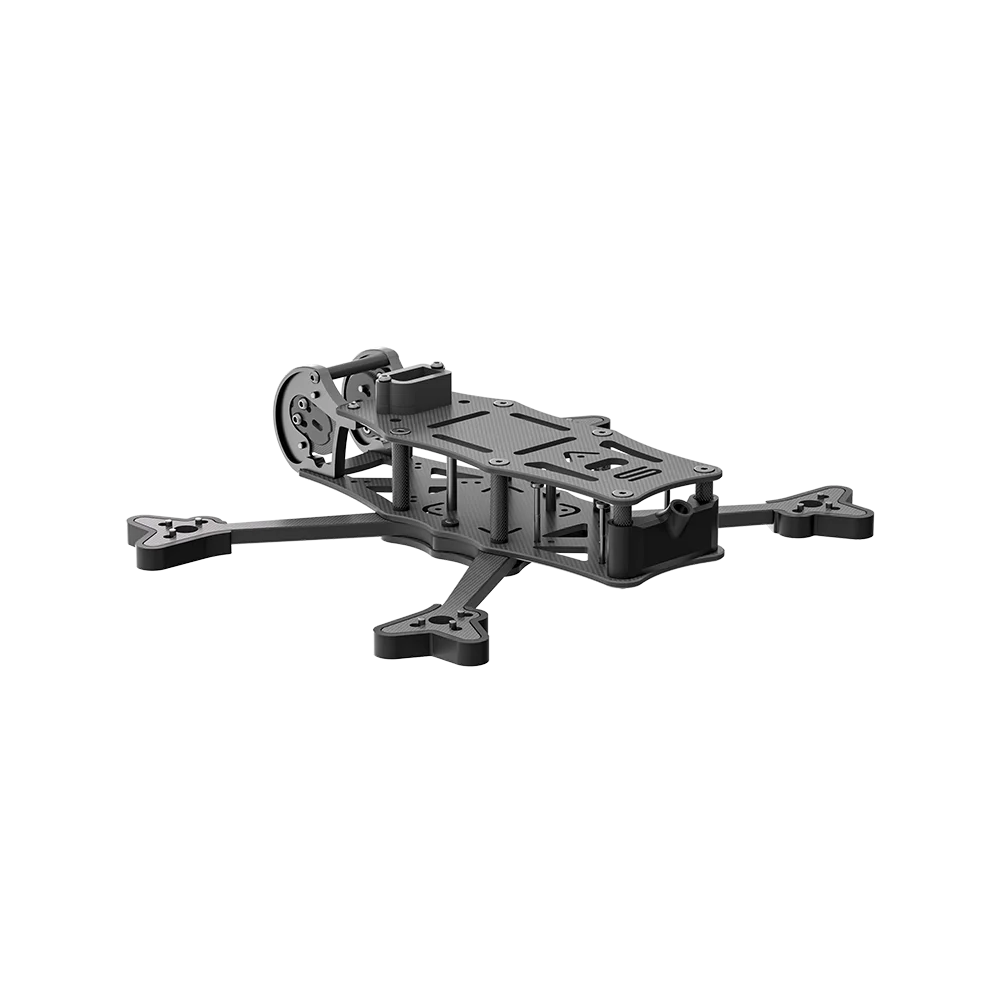

• Frame Product Name: AOS 4 v5 Frame Kit

• Frame wheelbase: 180mm

• Frame Dimension: L145.5*W106*H31.5 mm

• Arm Thickness: 4.5mm

• Top Plate Thickness: 2mm

• Bottom Plate Thickness: 2mm

• Upper Plate Thickness: 2mm

• Max Flight Stack Height: 20mm

• Max VTX Height: 20mm

• Motor Mounting: 16x16-φ3mm

• Flight Stack Mounting: 20*20/Φ3mm 25.5*25.5/Φ2mm

• VTX Mounting: 20*20/Φ3mm 25.5*25.5/Φ2mm

• Motor Mounting: 9*9 12*12-φ2mm/3

• Weight: 128g

• Compatible: Vista HD system/ BLITZ Whoop 1.6W VTX / DJI O3 Air Unit HD

NOTE: Due to manufacturing processes, the thickness of our products may have a standard manufacturing tolerance of ±0.2mm. The size of the hole may have a standard manufacturing tolerance of ±0.1mm.

Packing List

• 1 x AOS 4 V5 Frame Kit

• 1 x Screw Bag

• 2 x Battery Strap

• 2 x Battery pads
