10.4" COLOR LCD SOUNDER FCV-295 New Digital Fish Finder Delivers Crystal Clear Image Of Fish Targets And Bottom Structure

$14,187.47 USD

~~$14,187.47 USD~~ $14,187.47 USD

Sale Sold out

Default Title Default Title

Quantity

SPECIFICATIONS

Brand Name: NoEnName_Null

Hign-concerned Chemical: None

Origin: Mainland China

Place of Origin: Japan

Brand Name: furuno

Part: Piston

Features

10.4"bonded color LCD provides clear view in any weather conditions
Post-processing gain control applies to all existing returns on the display

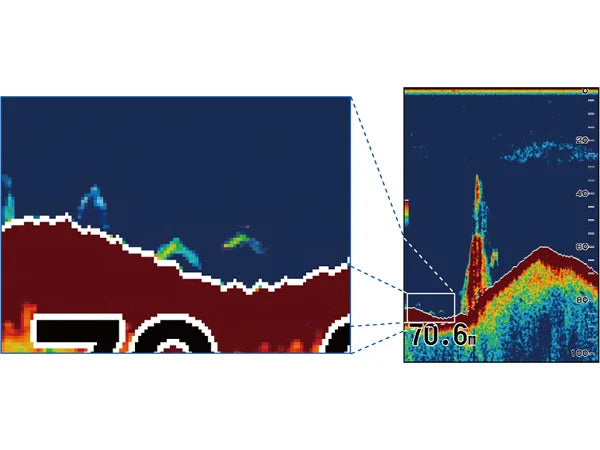

White Edge function trace the bottom contour with a thin white line
FURUNO Digital Filter delivers crystal clear target presentation

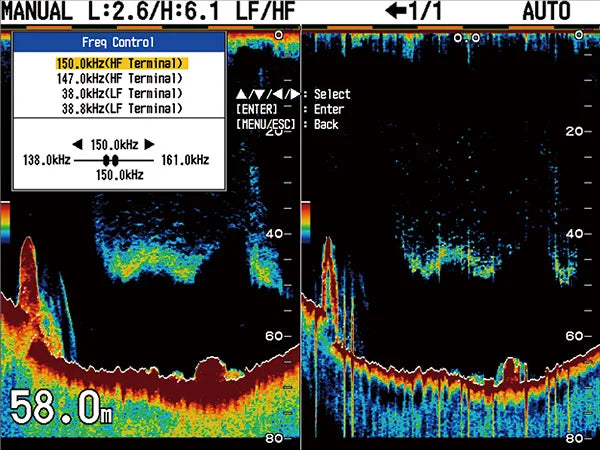

FURUNO Free Synthesizer transceiver allows adjustable operating frequency

Specifications

DISPLAY

Display unit: 10.4" TFT color LCD
Pixel number: 640 x 480

FISH FINDER

Frequency: The synthesized transreceiver works with dual frequencies in 28 to 200 kHz
Transducer: 1, 2 or 3 kW
Range Scale: 5-3000 m
Pulselength & PRR: 20-3000 pulse/min
Display Mode: Single (HF/LF), Dual, Single+Zoom, two Custom modes, Zoom mode (Bottom lock, Bottom zoom, Marker zoom), Mix mode, Nav data, A-scope

OTHERS

Waterproofing: IP55 (When flush mounted)
Power Supply: 12-24 VDC: 2.6-1.3 A
100/110/220/230 VAC, optional rectifier required
Size: 306 (H) x 323 (W) x 185 (D)
Weight: 7.0 kg

Equipment List

Standard

DISPLAY UNIT FCV-295-E1 UNIT
STANDARD SPARE PARTS, INSTALLATION MATERIALS,
ACCESSORIES AND MANUALS1 SET

Option

1 KW TRANSDUCER200B-5S (10 M)
28F-8
50B-6 (10 M)
50B-6B (15 M)
50B-9B
88B-8
2 KW TRANSDUCER200B-8
200B-8B
28BL-6HR
28F-18
38BL-9HR
50B-12
50BL-12
50BL-12HR
82B-35R
88B-10
3 KW TRANSDUCER28BL-12HR
28F-24H
38BL-15HR
50BL-24H
50BL-24HR
50F-24H
68F-30H
5 KW
TRANSDUCER200B-12H
88F-126H
DUAL FREQUENCY TRANSDUCER
50/200-1T (RUBBER)1 KW
2P TWISTED PAIR CABLE5M,10M,15M
SIGNAL CABLE ASSEMBLY5M
ADAPTOR CABLE ASSY
THRU-HULL PIPENO.4
NO.5
NO.6 (2 holes)
NO.7 (2 holes)
NO.11 (2 holes)
RECTIFIER (CHINA)PR-62
(100 VAC/220 VAC)
SPEED/TEMPERATURE SENSOR
ST-02MSB (USA)10M
SPEED/TEMPERATURE SENSOR
ST-02PSB (USA)10M
TEMPERATURE SENSOR
T-02MSB10M
TEMPERATURE SENSOR
T-02MTB10M
TEMPERATURE SENSOR
T-03MSB10M

Interconnection Diagram

Documentation

FCV-295 Brochure
(Last update: Mar 23, 2023)
FCV-295 Operator's Manual
(Last update: Jul 25, 2024)

Contact

Locate a DistributorContact a local distributor for further details.

* Specifications subject to change without notice.

Fish Finder

5.7" COLOR LCD FISH FINDER ModelFCV-600
8.4" COLOR LCD FISH FINDER ModelFCV-800
5.7" COLOR LCD FISH FINDER ModelFCV-628
8.4" COLOR LCD FISH FINDER ModelFCV-588
5.7" COLOR LCD FISH FINDER ModelFCV-688
12.1" COLOR LCD SOUNDER ModelFCV-1150
10.4" COLOR LCD SOUNDER ModelFCV-295
FISH FINDER ModelFCV-1900
HI-RES TruEcho CHIRP FISH FINDER ModelFCV-1900B
TruEcho CHIRP WITH UNIQUE FISH SIZE INDICATOR ModelFCV-1900G
STABILIZED FISH SIZE INDICATOR ModelFCV-38
FISH SIZE INDICATOR ModelFCV-2100
FISH SPECIES AND BIOMASS SOUNDER ModelFSS-3BB
BLACK BOX NETWORK SOUNDER ModelDFF3-UHD
BLACK BOX NETWORK SOUNDER ModelDFF1-UHD
BLACK BOX BOTTOM DISCRIMINATION SOUNDER ModelBBDS1

ProductsMarine Solutions

Fishing
Navigation
Communication
Other Marine Equipment
Marine Solution
- AR Navigation System
- Voyage Planning System
Monitoring Solution
- Coastal Monitoring System
- Cyber Security & Remote Monitoring Platform

FCV-295 is a color digital sounder

New digital fish finder delivers crystal clear image of fish targets and bottom structure

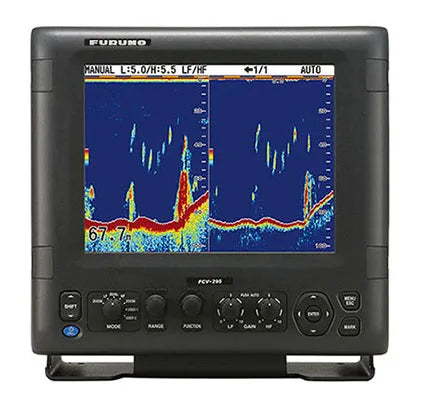

The FCV-295 is a color digital sounder designed for a variety of professional fishing operations. It features a bonded 10.4 LCD display providing superior viewing even in direct sunlight. You can display echoes in 8, 16, or 64 colors, with color assignment dependent on the strength of the returned echo.
